Geometry Measurement
  • TGIS-SL® (Tire Geometry Inspection System with Sheet of Light) +

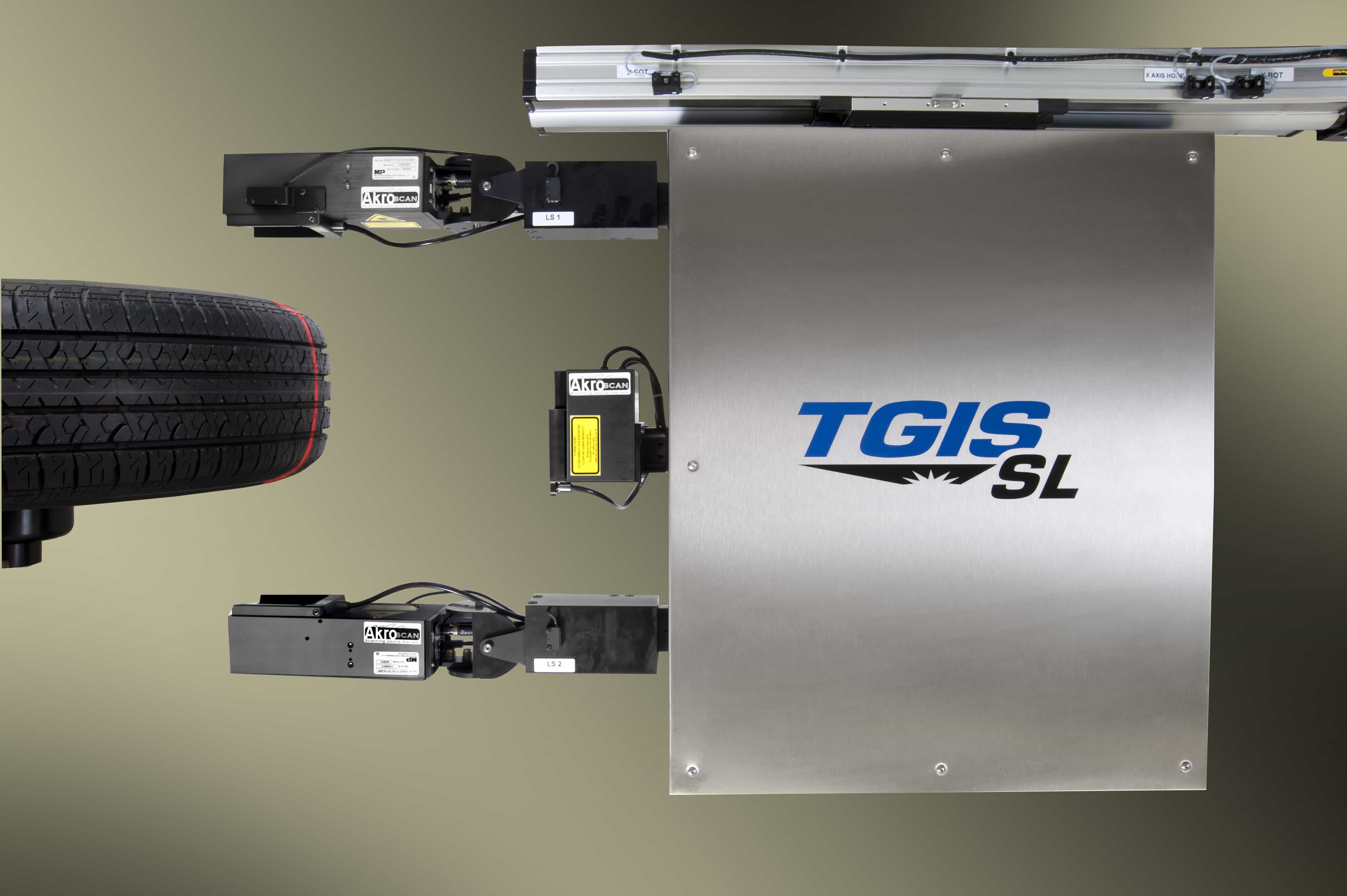

    The TGIS-SL® is a Micro-Poise geometry system that allows operators a complete sidewall inspection in one revolution.  This allows the operator to inspect for any anomalies in the tires and tire & wheel assemblies, such as bulges or depressions that would compromise the integrity of a tire.  With the scanning ability to view sidewalls with excessive lettering and designs more accurately and to send that information faster and further with the availability of Ethernet connection, the TGIS-SL® is a complete geometry inspection system that complements a multitude of Micro-Poise uniformity and dynamic balance machines.

    The TGIS-SL® has the largest measurement area and field view, fastest scanning, and highest resolution of any similar sensor on the market, using AkroSCAN™ technology.  Only one revolution is required to accurately scan a tire for imperfections.  The TGIS-SL® maximizes throughput of inspected tires.

    TGIS-SL® currently has the capability to fit these passenger and light truck testing machines:

    For Truck and Bus tire manufacturers, the TGIS-SLT™ (Tire Geometry Inspection System with Sheet of Light for Truck) has the capability to fit these Truck/Bus Tire testing machines:

  • The TGIS-SL® provides: +

    • Complete Sidewall Inspection in one revolution
    • Proven reliable mechanical components
    • Precise positioning and control of the high-resolution, laser-triangulation sensors
    • Largest sensor standoff from the tire surface
    • Repeatable, four axis positioning featuring integrated motor/controller packages
    • Collision avoidance sensors
    • Multi-axis breakaway sensor mounts
    • Reduced amount of electronics and integrated cable management
    • Air purged sensors to keep debris off lenses
    • Most narrow profile for retrofitting to existing machinery
    • Multi track measurement without adding cycle time
    • Displays measurements in a powerful, color-mapped image and results table
    • Rejected tires can be analyzed off-line
    • Associates data with individual tire IDs
    • Uses “exception region” technology to inspect through sidewall letter and ornamentation
    • All axes are fully automatic and programmable by tire code
    • Probes are mounted on safety two-axis breakaways
